Atrium with ice class and 10000 nautical miles range

Martin Hager

 · 17.12.2018

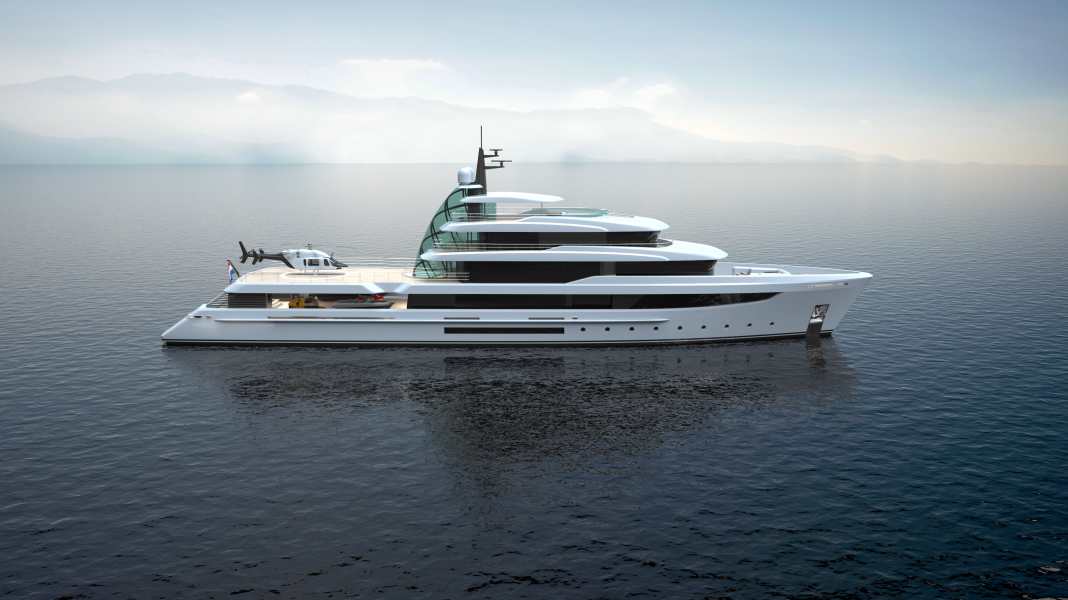

Atrium with ice class and 10000 nautical miles rangePhoto: Unbekannt
Atrium with ice class and 10000 nautical miles range | te
"Crystal" is the name given by the Dutch design office Mulder Design to its latest 70-metre concept, which clearly has explorer genes with its large heli-platform and ice class 1C.

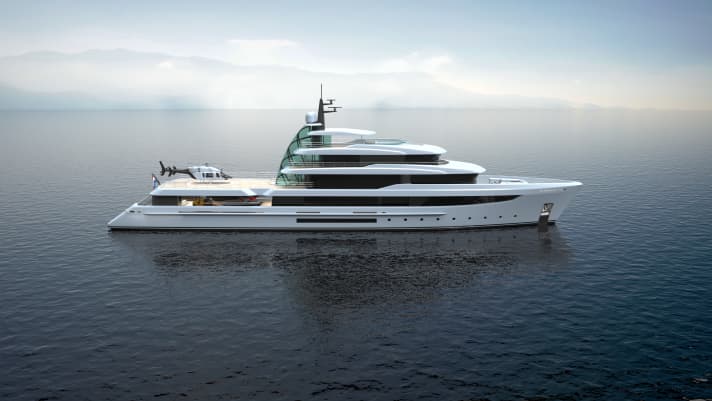

Abrupt silhouette: Frank Mulder drew the Explorer "Crystal". A glass atrium over four decks stops the lines in front of the helipad. | d.Photo: UnbekanntAbrupt silhouette: Frank Mulder drew the Explorer "Crystal". A glass atrium over four decks stops the lines in front of the helipad. | d.

However, "Crystal" does not sail as an icebreaker or fishing companion. The designers have therefore not forgotten about spectacular effects beyond any considerations of practicality and pure utility. "One of the most striking features of our new design is a glass atrium, in which a staircase connects four decks and provides plenty of light in the interior," Frank Mulder began the concept description at the MYS in September.

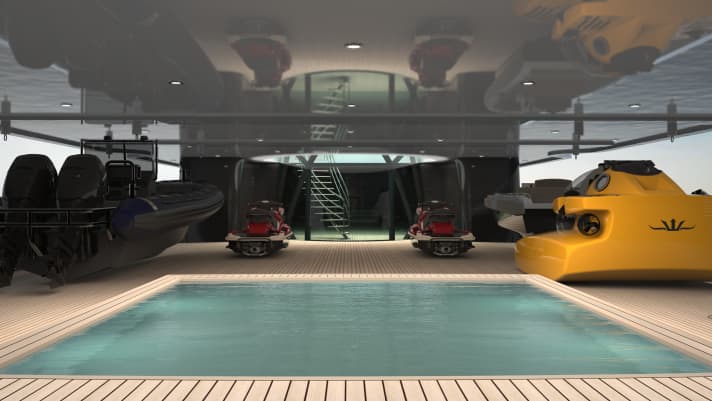

Atrium look: The helicopter landings offer air show fun (above). Owners and guests pool between toys on the main deck. | s.Photo: UnbekanntAtrium look: The helicopter landings offer air show fun (above). Owners and guests pool between toys on the main deck. | s.


The experienced naval architect founded his design studio 40 years ago and has been running the company together with his son Bas since 2000. The reference list of the designers is long and peppered with some spectacular formats. These include what is still the fastest yacht in the world, "The World is not Enough", and the 53-knot "Octopussy", which was commissioned by US owner and James Bond fan John Staluppi.
The trend towards lots of glass in the superstructures continues. After the 80 metre long "Artefact", which is currently being built at Nobiskrug and is known throughout the industry as a "glass yacht" due to the 70 tonnes of glass in the hull and superstructure, the next glass superlative is entering the large yacht stage with the 70 metre long "Crystal".

boote/exclusiv/M3552432Photo: Unbekannt


Fancy some technical buzzwords? "Diesel bunkers and hull lines allow a range of 10,000 nautical miles. This could attract adventurous owners to polar regions." Customers can choose between three propulsion systems: a conventional drive train consisting of two diesel engines that transmit their power to the shafts, a hybrid package (diesel and electric motors) or a diesel-electric unit that works on pods.
The interior design and layout have not yet been finalised, but Mulder is reserving an entire deck for the owner. The charter mode limits "Crystal" to twelve guests. If the owner is travelling, the number rises to a maximum of 14. 18 crew members take care of navigation and service.

How do you like this article?
boote/exclusiv/M3552433Photo: Unbekannt


As befits an explorer suitable for expeditions, Mulder has equipped the 13.20 metre wide steel-aluminium displacement vessel with a helideck for tenders weighing up to four tonnes. Underneath, on the pool deck, a selection of toys, a submarine and two tenders are stored. "The view from the glass atrium will be spectacular," says Mulder confidently. "Especially when a helicopter swoops in." mulderdesign.nl
