On-board toolDrill driver with reclamping function

Michael Rinck

 · 08.10.2022

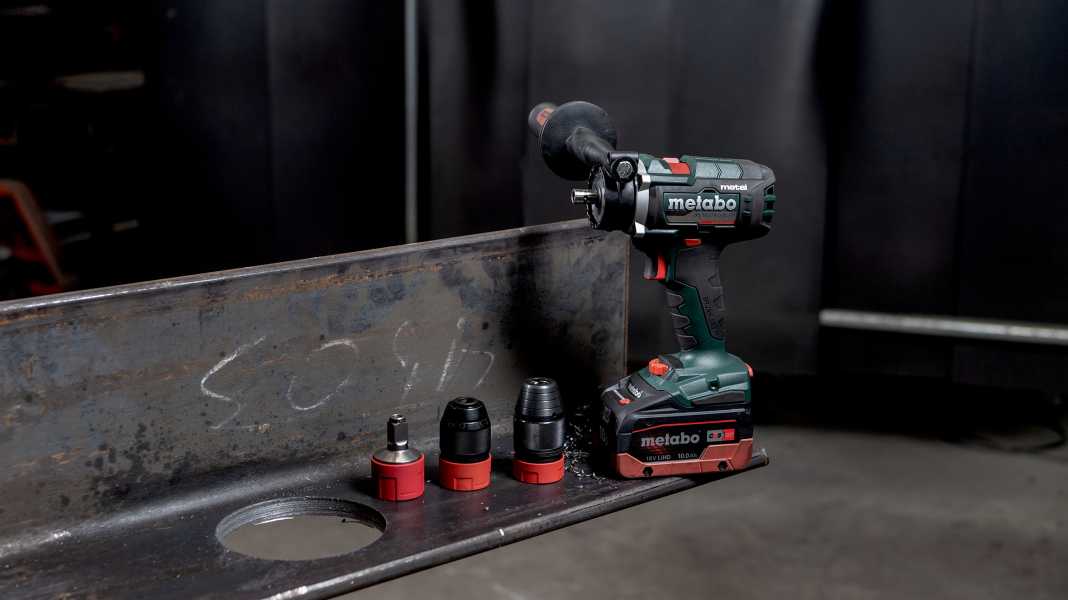

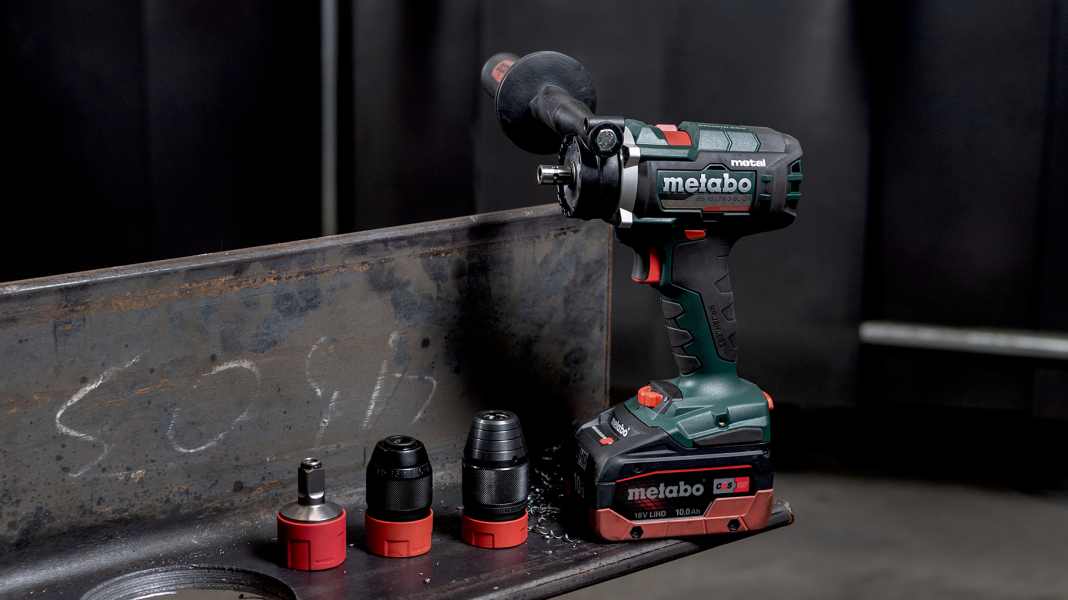

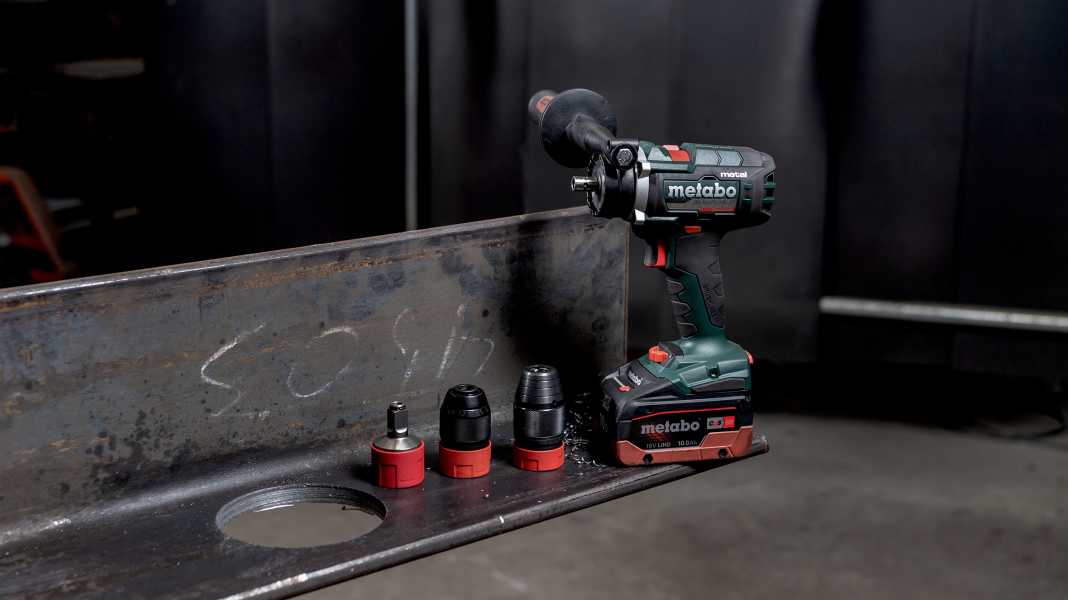

On-board tool: Drill driver with reclamping functionPhoto: Hersteller
The cordless drill drivers in the LTX-3 series feature QuickPlus, a quick-change system for drill chucks
With the LTX-3 series drill drivers, Metabo has four new particularly powerful models with 18-volt batteries in its range

The series includes cordless and impact drill drivers that also fulfil the necessary requirements for metal work. A 3-speed gearstick ensures a wide range of speeds. These range up to 450 rpm in first gear, 2,000 rpm in second gear and up to 4,000 rpm in third gear. The brushless 18-volt motors develop an enormous torque of up to 130 Newton metres. Even with the additional handle, this cannot always be countered, the anti-kickback function is designed to protect against injuries. There is no kickback if the drill bit jams in the material. The QuickPlus quick-change system makes it easy to change the tool holder. The new drill chuck tightens automatically: The clamping force is increased in proportion to the cutting force, preventing the drill bit from slipping.

There are three battery sizes to choose from, depending on requirements and application. Price from 368 euros.

Useful attachments for cordless drill drivers

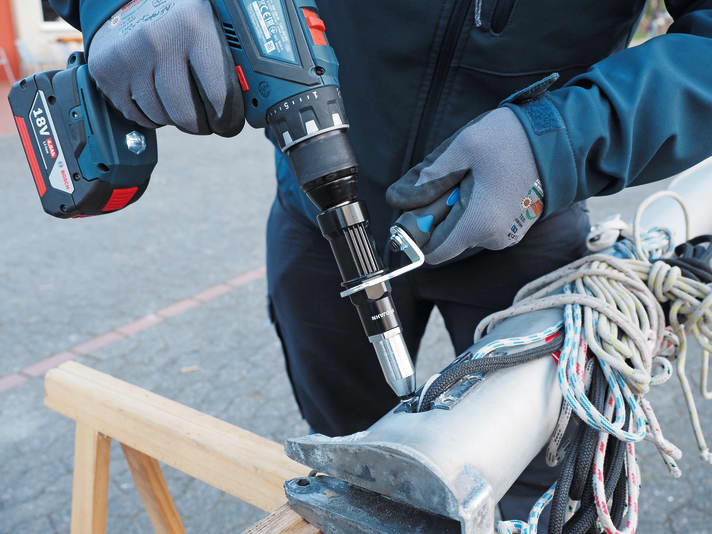

Even rivets with a larger diameter can be set easily thanks to the power of the cordless drill driverPhoto: Hauke SchmidtEven rivets with a larger diameter can be set easily thanks to the power of the cordless drill driver

Blind rivet attachment: turn instead of push

A blind rivet adapter can be very helpful when working on superstructures and masts. Only small rivet diameters can be used with simple pop rivet pliers from the DIY store, especially as the Monel rivets required for seawater use require significantly more pulling force than simple aluminium versions. Models with lever or scissor action are therefore required. When working with 6.4 millimetre rivets, however, a lot of force is required even with such rather unwieldy professional tools. For this reason, we tried out the professional rivet adapter from Projahn - it should also be able to handle thick rivets. The tool is made entirely of metal and makes a very solid impression. However, according to the instruction leaflet, it is not suitable for steel or stainless steel rivets with a diameter of more than five millimetres. As the Monel alloy is not listed in the instructions, we enquired with Projahn and received approval for testing.

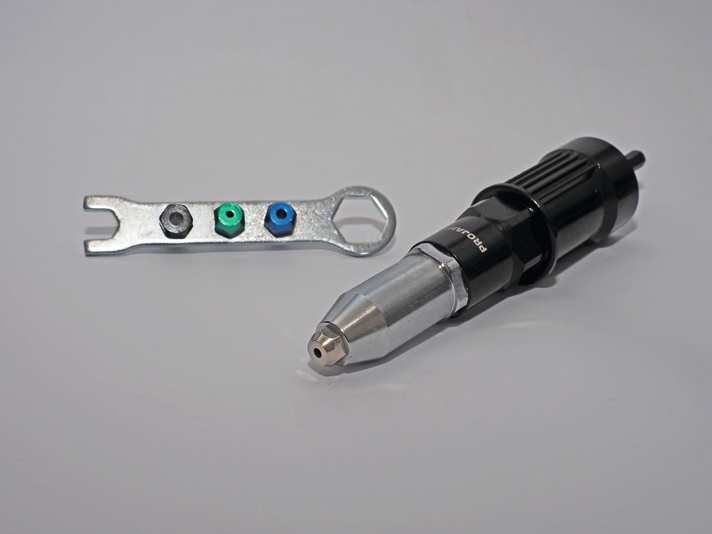

The blind rivet attachment from Projahn fits all standard drill chucksPhoto: Hauke SchmidtThe blind rivet attachment from Projahn fits all standard drill chucks

The adapter is simply clamped into the chuck of the cordless screwdriver, then the machine is slowly rotated anti-clockwise until a soft click is heard. This opens the jaws inside the adapter and the rivet can be inserted. Riveting itself is carried out in clockwise rotation and requires hardly any force. For larger rivets, only the enclosed handle needs to be used to counteract the torque of the cordless screwdriver. The attachment is available from specialist retailers or online for around 100 euros. We tested the product and awarded it five out of five stars.

Impeller pump: Suction or decanting made easy

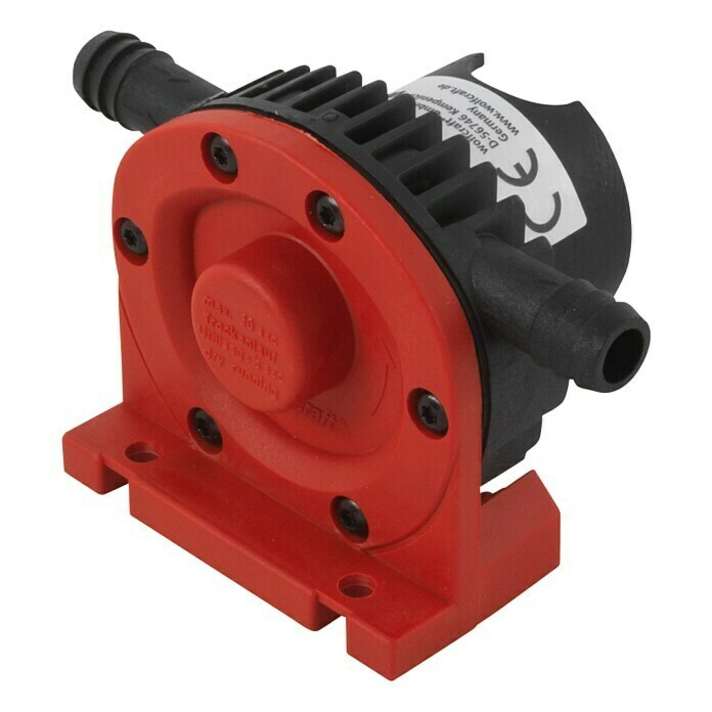

This pump is driven by any drill driverPhoto: HerstellerThis pump is driven by any drill driver

This impeller pump from Wolfcraft could be useful for pumping out or decanting tanks. It is powered by a drill or screwdriver. Delivery rate 1,300 litres per hour, suction height 3 metres, half-inch connections. Not suitable for pumping fuel. Price: 11 euros.
