​Maintaining outboard motors: The complete guide to 4-stroke engines

​These instructions were produced in collaboration with BAUHAUS Nautic

Seasonal maintenance is not a question of effort, but of common sense. A neglected outboard motor is particularly likely to let you down on your first trip of the season, out on the water. Regular maintenance and keeping a record of the work carried out will extend the engine’s service life and, as a bonus, increase the boat’s resale value. All specific figures in this article, such as fill levels, torque values and electrode gaps, are taken from a practical example and are for guidance only. The manual for your own engine is always the definitive source.

When is it enough to do the work yourself, and when do you need to call in a specialist firm?

During the warranty period, all servicing work should be carried out by an authorised specialist workshop. Anyone who carries out repairs themselves risks encountering problems with warranty or goodwill claims. Once the warranty period has expired, the following serves as a general guide: on 4-stroke outboard motors up to around 15 PS, many standard jobs can be carried out yourself with the right tools, the appropriate spare parts and the manual.

An important note before we begin: 4-stroke outboard engines with a separate oil circuit and 2-stroke outboard engines differ fundamentally in their design and maintenance requirements. This article relates exclusively to 4-stroke engines. To find out how to maintain a 2-stroke engine, please read our Premium PDF.

All the steps in the video

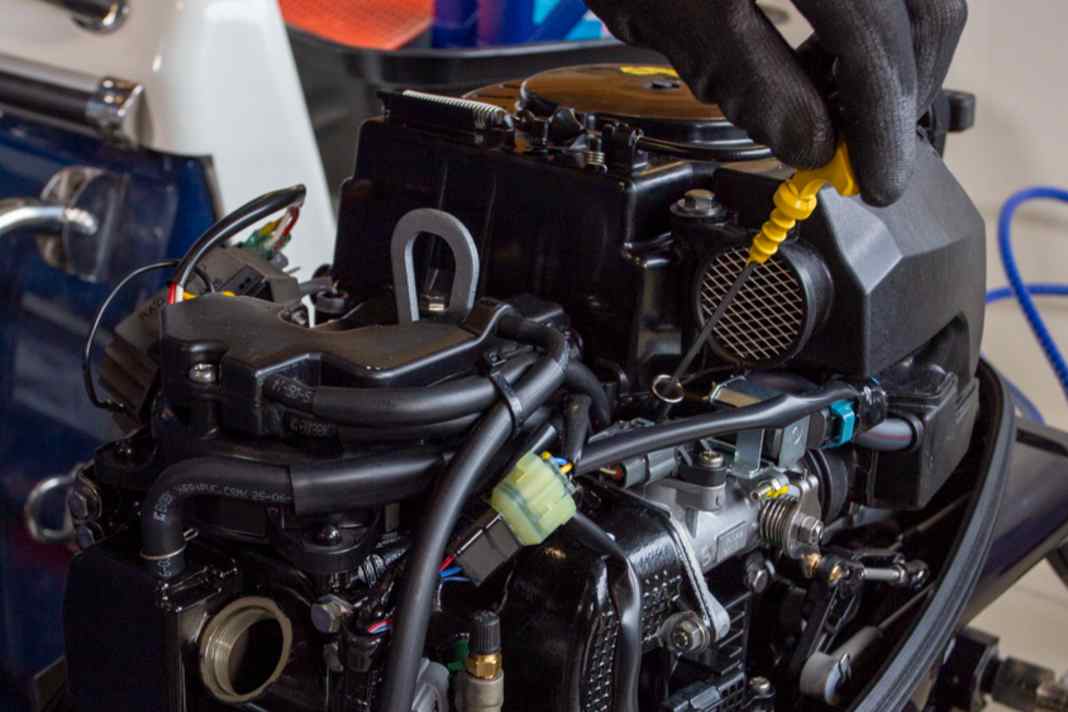

​Maintenance at a glance: What needs doing each year

• Check the spark plugs and replace them if necessary
• Check or replace the fuel filter; ensure the flow direction is correct
• Drain the engine oil, change the oil filter, top up with fresh oil
• Dispose of used oil correctly (return it to the retailer or take it to a recycling centre)
• Change the gearbox oil; replace both seals
• Replace the impeller (at least every 50 operating hours)
• Apply marine grease to all grease nipples and Bowden cables
• Check sacrificial anodes for wear and replace if necessary
• Check the battery and terminals (for electric start only)
• Test run using water cooling only; check the test jet
• Record work carried out in the service booklet

Tools, safety and preparation

Safety goggles and nitrile gloves are not just a bureaucratic formality when carrying out engine maintenance. Used oil, fuel residues and cleaning agents can irritate the skin and eyes. Petrol vapours are highly flammable. Work involving fuel should be carried out in well-ventilated areas with no open sources of ignition.

Before loosening or opening anything, ensure that the engine is securely positioned. If it is attached to the boat: apply the trailer brake, secure the boat to prevent it from rolling away, and prop it up if necessary. Disengage the gear and remove the Quickstop clip.

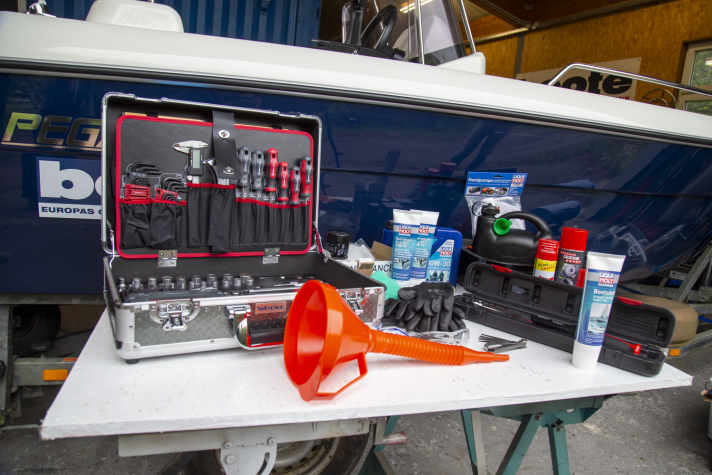

All tools, seals, spare parts and consumables must be placed on the workbench before starting work. If you only start looking for them once you’ve begun tightening the bolts, you’ll have to stop work at the worst possible moment. Always check part numbers against the engine model and year of manufacture beforehand.

Basic tools:

• Ratchet box
• Screwdriver set
• Spark plug wrench
• Torque spanner
• Oil filter spanner
• Gearbox oil pump
• Grease gun
• Drip tray and clean cloths

Spark plugs, fuel and engine oil

Spark plugs: read first, then replace

The removed spark plug is a diagnostic tool. Fawn-coloured electrodes indicate clean combustion. Jet-black electrodes suggest a mixture that is too rich or carburettor problems. Whitish electrodes may indicate that the mixture is too lean. Place the old and new spark plugs side by side and compare them.

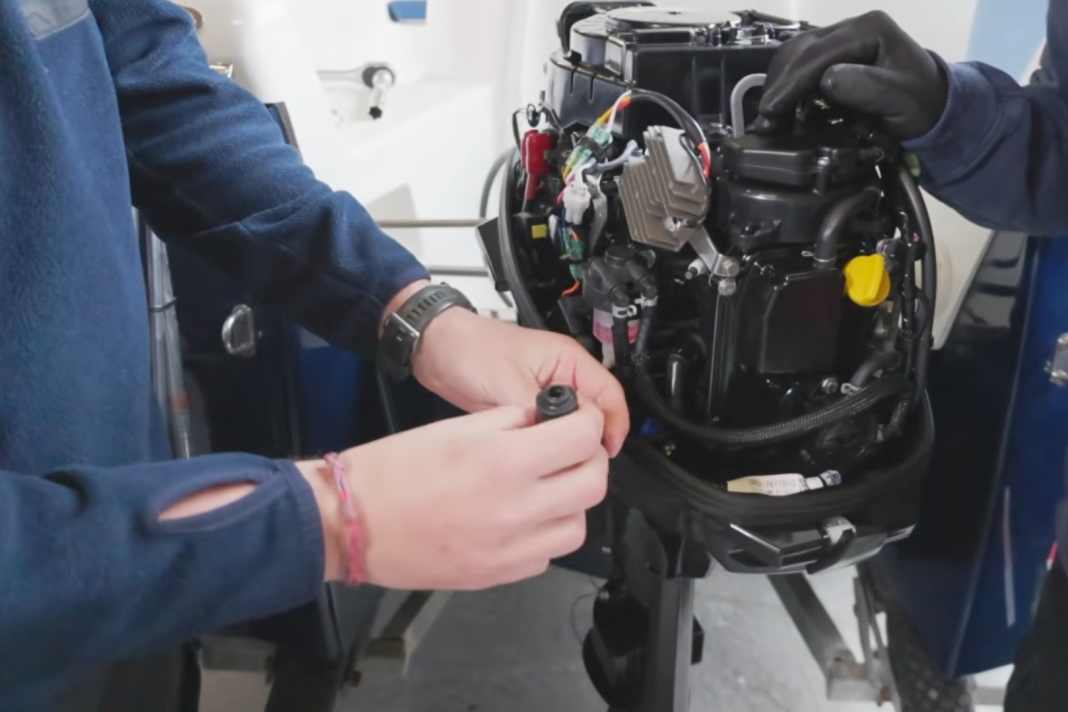

When removing the spark plug, always hold it by the connector; never pull on the cable. First, screw the new spark plug into the thread by hand. Stripping the thread in the aluminium cylinder head is one of the most costly mistakes in this job and can often only be rectified by drilling it out. Only when the spark plug turns straight and easily should you use the tool to tighten it. Check the torque and electrode gap according to the manual. In the practical example, the gap was 0.8 to 0.9 mm and the tightening torque was 18 Nm.

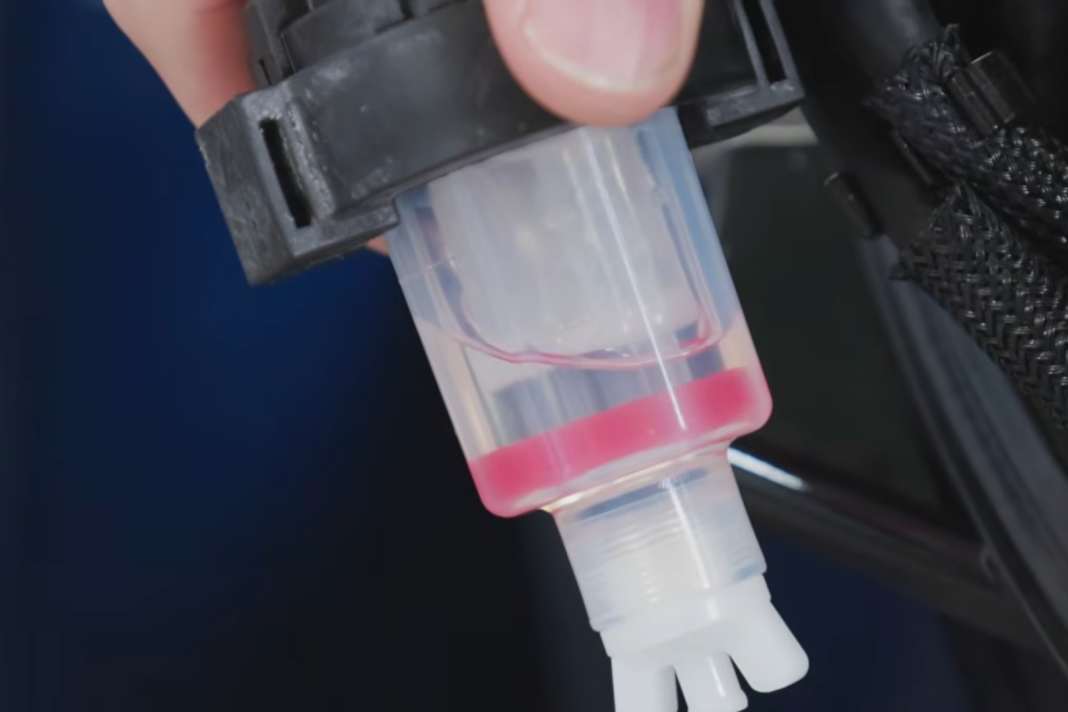

Fuel filter: it’s all about the direction

Before opening the fuel system, shut off the fuel supply and place a cloth underneath. Hold the old filter up to the light: this makes it easy to spot dirt, cloudiness or water build-up. Depending on the type of filter, either clean the insert or replace the entire filter. When fitting the new filter, pay attention to the direction arrow: it always points towards the engine. If you ignore this, you’ll end up with a blockage.

Check the pipes for cracks, porosity and hard spots. For filters with a water separator, check the float ring. After opening the system, fill it using the primer ball and then bleed the air out.

Engine oil: not too little, not too much

Used engine oil contains residues and acids which can corrode bearings and internal surfaces whilst the engine is not running. Change the oil whilst the engine is warm, if possible, as warm oil is more fluid and drains more easily. If the engine is started before the oil change: only do so whilst the water cooling system is running.

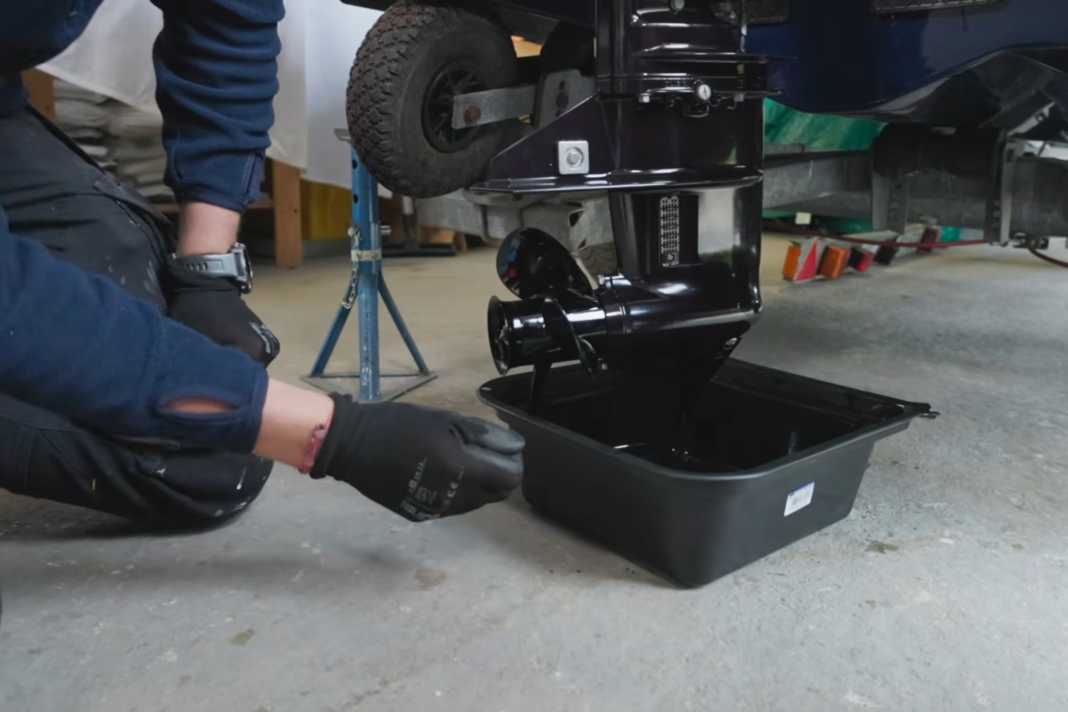

Wipe the area around the drain plug clean, place a drip tray underneath, open the oil filler cap, and only then loosen the drain plug. Tighten the new drain plug with a new gasket in accordance with the manufacturer’s instructions. In the practical example, this was 24 Nm.

Replace the oil filter every time you change the oil. Before fitting the new filter, be sure to check whether the old rubber seal has become lodged on the engine block. If this goes unnoticed and the new filter is fitted over it, the connection will leak. Lightly coat the new filter gasket with fresh oil, then screw the filter in by hand until it is tight.

When topping up, first pour in around 80 per cent of the specified amount, wait a moment, and then check the dipstick. Too much oil is just as harmful as too little: if you overfill, the crankshaft will hit the oil, causing it to foam, and the oil pump will draw in air instead of lubricant. The oil level must be between the ‘Min’ and ‘Max’ marks. For example: 1.2 litres with a filter change, 1.0 litres without.

Used oil is classified as hazardous waste and must not be poured down the drain or disposed of with household waste. In Germany, retailers are legally obliged to take back an amount of used oil equivalent to the quantity of new oil purchased at the same time. Keep your receipt. Alternatively, recycling centres and mobile hazardous waste collection services accept used oil free of charge.

Underwater section: gearbox, impeller and lubrication

Gearbox oil: always top up from the bottom

In the underwater section, the gears and bearings operate under constant pressure and in contact with water. The gearbox oil protects them from friction, heat and corrosion. When draining the oil, there is a specific sequence to follow: first loosen the lower plug, then open the upper bleed screw. Only then will air enter and the oil drain out completely.

Assess the oil being drained: a milky consistency indicates the presence of water in the gearbox. Metal shavings or abrasion particles suggest wear or damage. In either case, standard maintenance will not be sufficient.

New seals are essential for both bolts. Old seals often still look intact but will still let water in later on. Pump in fresh gearbox oil from the bottom until it emerges from the top without any bubbles. Then tighten the top bolt first, remove the pump, and immediately fit the bottom bolt.

Impeller: the most commonly underestimated wear part

Unlike a car engine, a boat engine is cooled exclusively by water. The small rubber impeller of the impeller pump circulates this cooling water. If the test jet is missing whilst the engine is running, the impeller is the first component to check. Over time, the rubber blades become brittle, tear or break off. Broken blades can block the cooling channels and further accelerate engine damage.

Guideline for replacement: every 50 operating hours or at least once a year, even if the impeller still appears to be in good working order from the outside. The underwater section must be removed for replacement. Disconnect the control linkage beforehand, loosen the fixing screws, and carefully remove the underwater section. Remove the old impeller, check the sealing surfaces and completely remove any old seal residue. Fit the new impeller with the drive pin correctly in place: without this pin, the shaft will spin freely whilst the impeller remains stationary. Tighten the housing evenly and in a crosswise pattern.

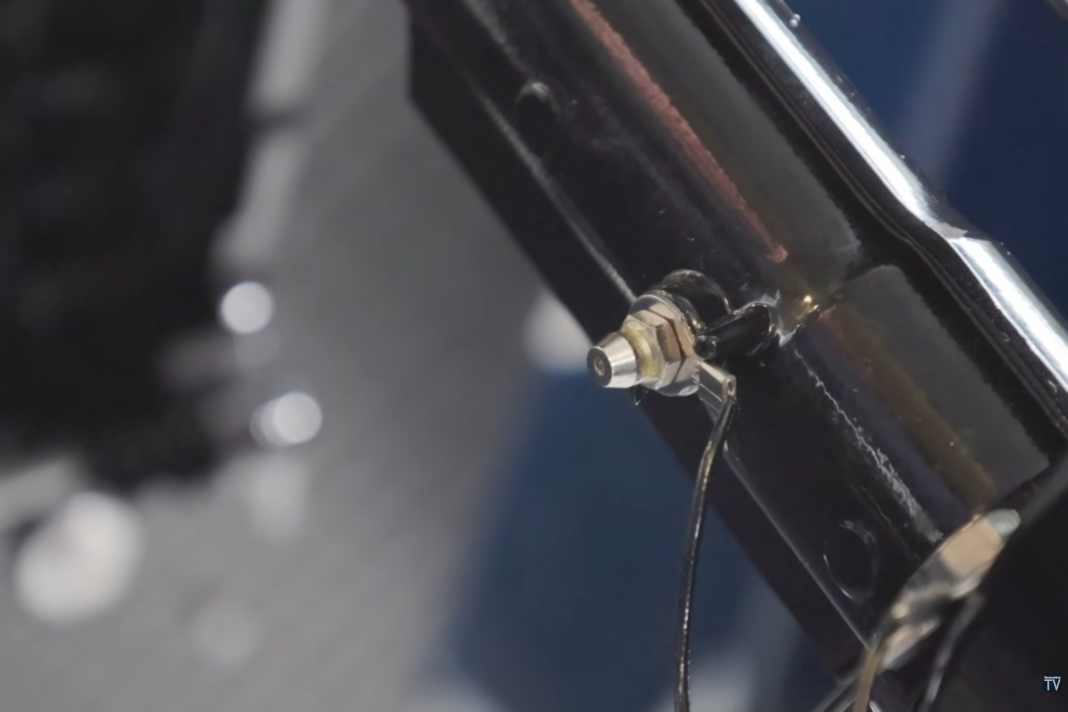

Lubrication: marine grease only

Water and the elements wash the grease out of joints, bolts and shafts. Ordinary multi-purpose grease from the garage washes out quickly and offers little protection on board. Only waterproof marine grease is suitable for outboard motors. Apply grease to all grease nipples using a grease gun until fresh grease is visibly dispensed. Apply a thin layer of grease to the steering, tilt joint, Bowden cables and gear linkage. A snapped Bowden cable whilst travelling forward on the open water is no trivial matter.

Anodes, the battery and the crucial test run

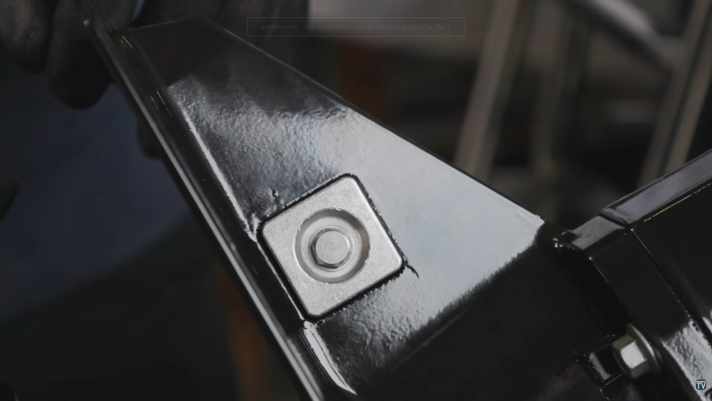

Sacrificial anodes: Keep the contact surface clear

Sacrificial anodes protect the aluminium of the outboard motor from electrochemical corrosion. They are designed to corrode faster than the engine casing. For this to work, they need to be in contact with the metal. Do not paint or grease them. Check their condition: if more than a third to a half of the material has been consumed, the anode must be replaced. Keep the contact surface clean during installation.

Battery for electric-start engines

For engines with an electric starter, measure the battery voltage using a multimeter. Clean corroded terminals with a terminal brush, then apply terminal grease. When disconnecting, always disconnect the negative terminal first; when connecting, connect the positive terminal first.

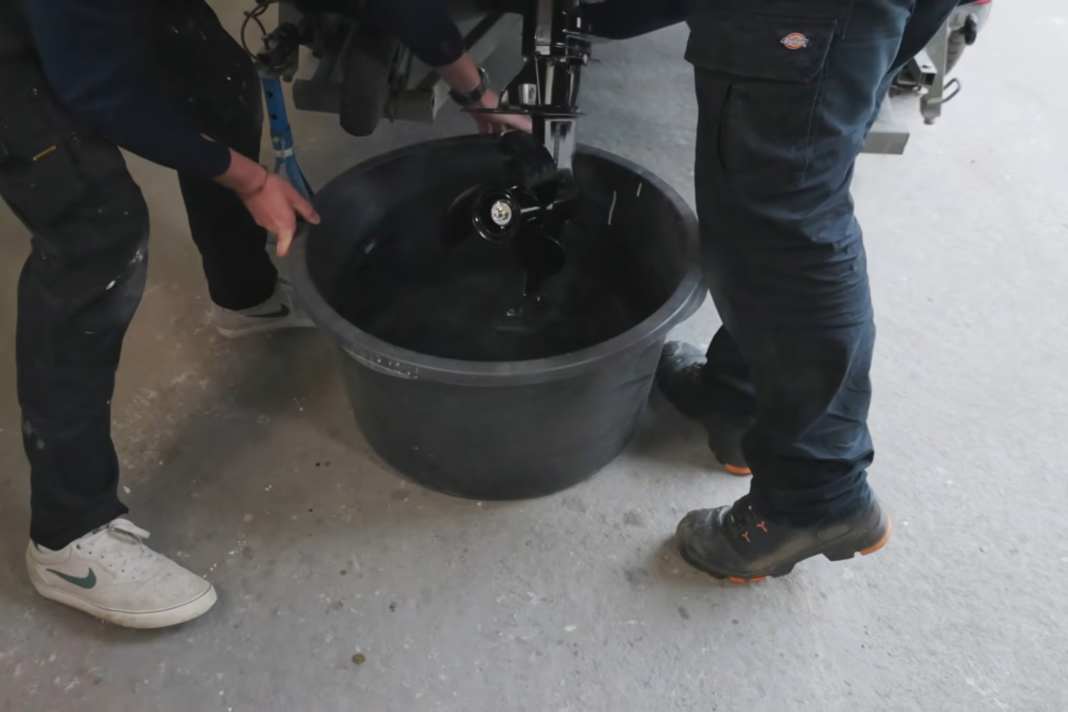

Test run: never without water

Under no circumstances should a 4-stroke outboard motor be started dry. Without water, the impeller pump will immediately run dry and suffer irreparable damage after a short time. A water barrel or a water inlet with a water connection must be in place before the engine is even started. The water level must fully cover the inlets.

Check the test jet immediately after starting. If there is no jet, switch off the engine immediately. Once the engine is running normally, check all fitted components for leaks: drain plug, oil filter, gearbox oil plugs, fuel lines. Check the engine oil level again after a short period of running.

Finally, the work carried out should be recorded in the service logbook: date, operating hours, fluids used, parts replaced and any notable issues. A fully completed service logbook is useful when Engine check for prospective buyers the difference. For those who prefer to track service intervals digitally, there is PropelLog: a handy addition to the service booklet be.

​Checklist: Maintaining a 4-stroke outboard engine

This checklist summarises the key steps involved in the annual maintenance of a 4-stroke outboard engine. Always check fluid levels, torque settings and spare parts in accordance with the manual.

Preparation and safety

• Have the service manual to hand
• Check the engine model, year of manufacture and part numbers
• Mark fill levels and torque values in the manual
• Have the appropriate spare parts, seals and consumables to hand
• Put on your safety goggles
• Wear nitrile gloves
• Ensure the workplace is well ventilated
• Remove any naked flames
• Support the engine securely on a stand or on the boat
• Apply the trailer brake and secure the trailer to prevent it from rolling away
• Take the gear out
• Remove the Quickstop clip
• Have a drip tray, rags and a disposal container to hand

Spark plugs

• Removing the bonnet
• Pull the spark plug cap off at the cap itself, not at the cable
• Loosen the spark plug using the correct spark plug wrench
• Check the candle’s appearance: fawn, black, whitish or oily
• Compare the old and new spark plugs
• Check the thread length and heat rating
• Check the electrode spacing as per the manual
• First, screw the new spark plug in by hand
• Tighten the spark plug in accordance with the manufacturer’s instructions
• Refit the spark plug caps securely

Engine oil and oil filter

• Position the motor vertically
• If necessary, warm up the engine briefly using water cooling only
• Open the oil filler cap and dipstick
• Clean the area around the oil drain plug
• Place a drip tray underneath
• Loosen the oil drain plug
• Allow the used oil to drain out completely
• Fit the oil drain plug with a new seal
• Loosen the oil filter using the correct spanner
• Check whether the old filter gasket is still attached to the engine
• Remove the old seal completely
• Lightly moisten the new oil filter gasket with fresh oil
• Fit the new oil filter by hand
• To begin with, fill with approximately 80 per cent of the prescribed amount of oil
• Wait a moment, then check the oil level with the dipstick
• Top up gradually to a level between the minimum and maximum marks
• Refit the oil filler cap and dipstick
• Check the oil level again after the test run
• Check the oil drain plug and oil filter for leaks

Used oil and oil-contaminated materials

• Transfer used oil to a suitable container
• Do not dispose of used oil down the drain, on the ground or with household waste
• Keep the receipt for the new oil
• Hand in used oil at a dealer, recycling centre or mobile collection point for hazardous waste
• Dispose of oil-soaked rags properly

Fuel system and fuel filter

• Cut off the fuel supply or disconnect the fuel tank
• Place a cloth under the filter and pipes
• Carefully loosen the clamps
• Remove the old filter or open the filter housing
• Make a note of the direction of flow through the filter
• Check the filter for dirt, water and deposits
• Clean or replace the filter, depending on the model
• Check fuel lines for cracks, porosity and hardened areas
• Insert a new or cleaned filter correctly
• Align the direction arrow with the motor
• Position the clamps correctly and tighten them
• Check the float ring on the water separator
• Drain the water if necessary
• Filling the fuel system with a primer ball
• Bleed the system in accordance with the manufacturer’s instructions
• Check filters, clamps and pipes for leaks

Gearbox oil in the submerged section

• Position the motor vertically
• Place a drip tray under the submersible section
• Loosen the lower gearbox oil plug first
• Then loosen the upper vent screw
• Drain the gearbox oil completely
• Check the oil for a milky colour
• Check the oil and screws for metal particles
• If the oil is milky or there are metal shavings, contact a specialist company
• Have new washers ready for both screws
• Fit the gearbox oil pump at the bottom
• Pump fresh gearbox oil in from below
• Pump until oil emerges from the top without any bubbles
• Fit the top screw first, using a new gasket
• Remove the pump
• Refit the lower screw immediately with a new gasket
• Tighten both screws in accordance with the manufacturer’s instructions
• Removing spilled oil
• Check the screws for leaks

Impeller and water pump

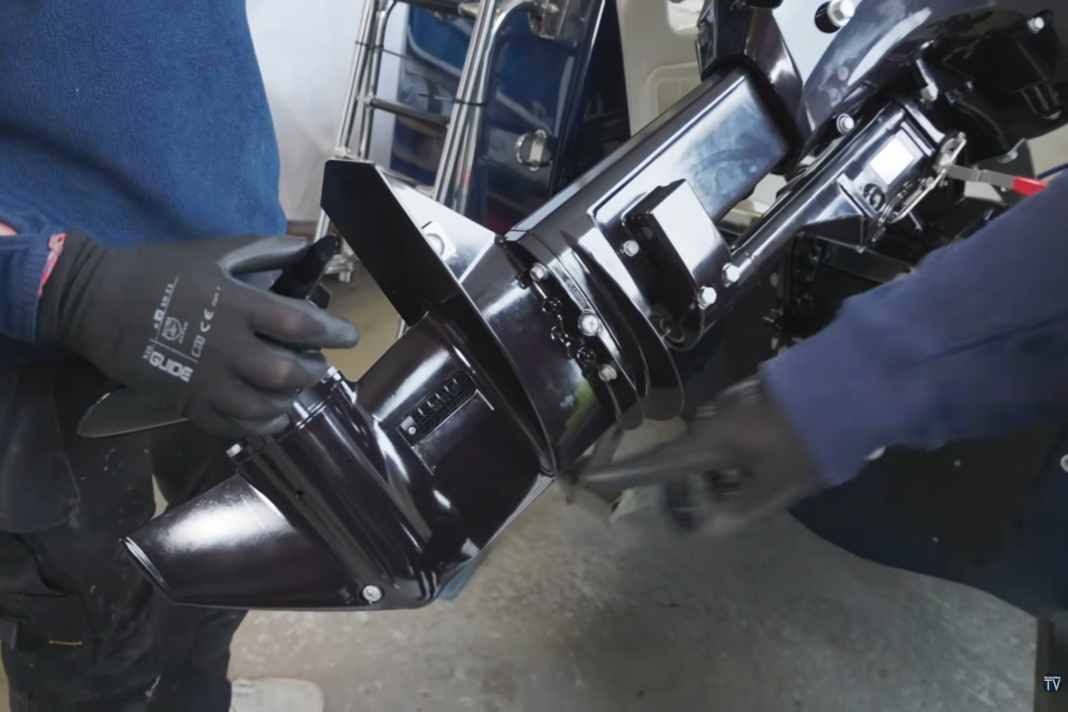

• Check and clean the water inlets on the underwater section
• Disconnect the gear linkage before removing the underwater section
• Loosen the fixing screws on the underwater section
• Carefully remove the underwater section
• Open the water pump housing
• Remove the old impeller
• Check the impeller for cracks, brittleness and missing blades
• Remove old seals and any remaining seal material
• Clean the sealing surfaces
• Fit a new seal
• Fit the new impeller
• Position the drive pin correctly in the groove
• Tighten the pump casing evenly in a criss-cross pattern
• Lightly grease the shaft area, if required
• Refit the underwater section
• Connect the gear linkage correctly
• Check the switching function later during the test run

Lubrication

• Use waterproof marine grease
• Locate the grease nipples
• Fit the grease gun
• Pump until fresh grease is visible
• Wipe off any excess fat
• Check and grease the steering
• Grease the tilt joint
• Grease the gear linkage
• Grease the throttle linkage
• Lightly grease Bowden cables and moving parts
• Check the movement of all parts marked in bold

Sacrificial anodes

• Locating sacrificial anodes on an outboard motor
• Check the anodes for wear
• Replace if there is significant material loss
• Cleaning contact surfaces
• Fit a new bare metal anode
• Do not paint the anode
• Do not grease the anode
• Check that the anode is securely fitted

Battery and electrical system, if fitted

• Check the battery voltage with a multimeter
• Check the battery terminals for corrosion
• Clean the pole with a pole brush if necessary
• Check that the cables are securely fastened
• When disconnecting, remove the negative terminal first
• When connecting, connect the positive terminal first
• Apply polar fat
• Check the electric start function during a test run

Test run

• Never start the engine when it is dry
• Prepare a water bucket or a sink
• Ensure that the water inlets are fully supplied with water
• Insert the Quickstop clip
• Start the engine
• Check the control beam immediately
• If the control beam is missing, switch off the engine immediately
• Monitor the engine’s operation
• Check the circuit carefully
• Check the throttle response
• Check the oil filter for leaks
• Check the oil drain plug for leaks
• Check the gearbox oil plugs for leaks
• Check the fuel filter, clamps and hoses for leaks
• Switch off the engine
• Please wait a moment
• Check the engine oil level again
• Top up the oil level if necessary

Completion and documentation

• Position the bonnet correctly and lock it in place
• Remove the tool and rag from the engine compartment
• Clean the outside of the engine
• Clean the work area
• Disposing of used oil and contaminated materials
• Enter the date of the service in the service booklet
• Record operating hours
• Make a note of the engine oil used
• Make a note of the gear oil used
• Make a note of the spark plug type
• Make a note of the filter type
• Document impeller replacement
• Record anode replacement
• Make a note of any abnormalities or damage
• Make a note of the next maintenance date
